Home > Products > Instant Water Heater Booster Pump DC50F

Instant Water Heater Booster Pump DC50F

热水增加泵(DC50F)
Product name:Instant Water Heater Booster Pump DC50F
Item:
Details:
Instant Water Heater Booster Pump DC50F is a Water heater circulation pump it's videly used for
Water or oil circulation,Gas water Heater,Tankless water heaters ,Instant electric water heater ,
Solar water heater etc.


Application
Water or oil circulation.
Gas water Heater
Tankless water heaters .
Instant electric water heater .
Solar water heater.
Other Water boost equipment  etc.

Feature
Can endure 70℃ high temperature.
Ceramic sleeve and ceramic shaft Long life
PWM/0~5V speed control function [optional]..
Closed impeller,high pressure.
Stall protection.
Slipping protection etc.

Parameter

Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
w
DC50F
12
1
4.5
4
12
12
1.5
6.5
5.5
18
24
1.5
13
11
36


Specification

Specs
NO
Items
Specs
1
Sizes
82.6x52x107 weight 200g
2
Dimension of inlet
Water heater special inlet
3
Dimension of outlet
Water heater special outlet
4
Pump material
PPE
5
Condition of use
Continuously
6
Fluids
Water,  antifreeze [Provide acid alkali solution]
7
Ambient temperature
-25~70℃
8
Max fluid temperature
70 ℃
9
Power consumption
12W~36W
10
Rated voltage
12V/24Vdc
11
Voltage used
8Vdc ~ 20Vdc or 12Vdc ~ 30Vdc
12
Noise
<40dB
13
Water proof class
IP62
14
Life span
More than 25000hrs
15
Power supply
Solar panel; DC electric source; battery


Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft optional.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

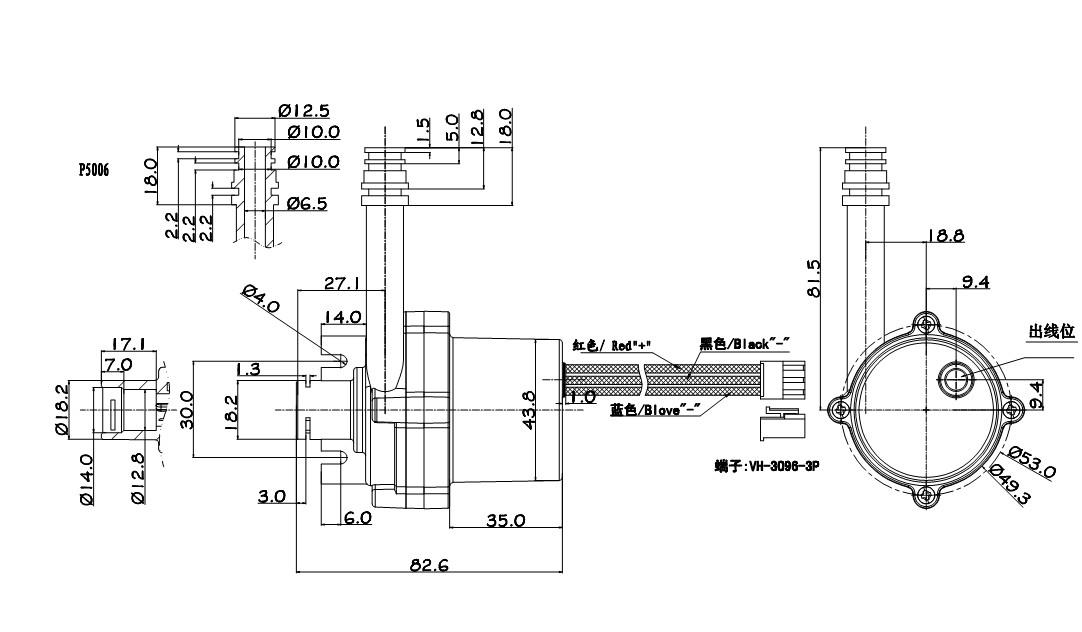

Dimension and Picture

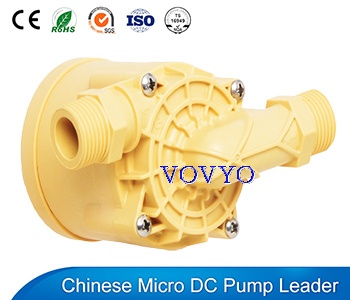

Hot Water Heater Boost Pump DC50F-1

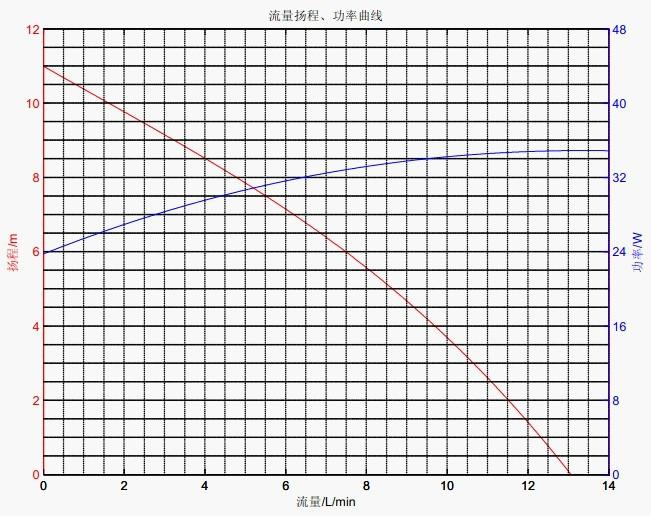

Head-Flow curve Graph
Hot Water Heater Boost Pump DC50F-2
