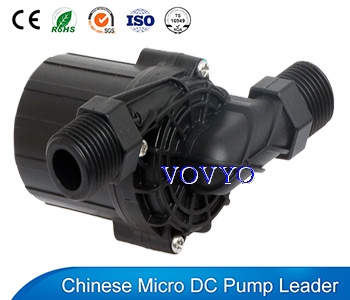

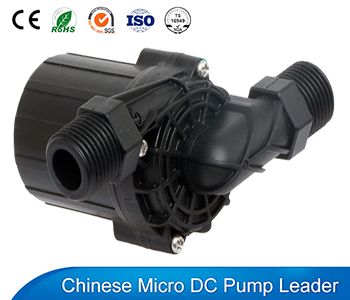

Solar Water Heater Circulation Pump DC45A

太阳能热水循环增加泵(DC45)
Product name:Solar Water Heater Circulation Pump DC45A
Item:
Details:
Solar Water Heater Circulation Pump DC45 is a mini water heat pump it's videly used for
Solar water heater circulation,Domestic heat pump water heater,Wall-mounted solar water heater,etc.

Application
Solar water heater circulation.
Domestic heat pump water heater.
Pressure pipeline special pump.
Pressure Tank circulation, water boost .
Wall-mounted solar water heater.
Other machine hot water circulation etc.

Feature
Can endure 105℃ high temperature,FG signal.
Over temperature and over voltage protection.
Can endure more than 1MPa pressure.
Closed impeller,high pressure.
PWM/0~5V Speed control function [optional].

Parameter
Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
W
DC45A
12
0.65
7
3
8
12
1.2
10
5
13
24
0.325
7
3
8
24
1.2
13
8
30

Specification
Specs
NO
Items
Specs
1
Sizes
8.5x102x52; weight 240g
2
Dimension of inlet
Thread nozzles: G1/2
3
Dimension of outlet
Thread nozzles: G1/2
4
Pump material
PPS
5
Condition of use
Continuously
6
Fluids
Water, anti-freeze fluid.
7
Ambient temperature
-25~70℃
8
Max fluid temperature
-20~105℃
9
Power consumption
8W~30W
10
Rated voltage
12V/24Vdc
11
Voltage used
8Vdc ~ 20Vdc , 12Vdc ~ 30Vdc
12
Noise
<40dB
13
Water proof class
IP62 (Submersible installed optional)
14
Life span
More than 20000hrs
15
Power supply
Solar panel; DC electric source; battery

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft optional.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

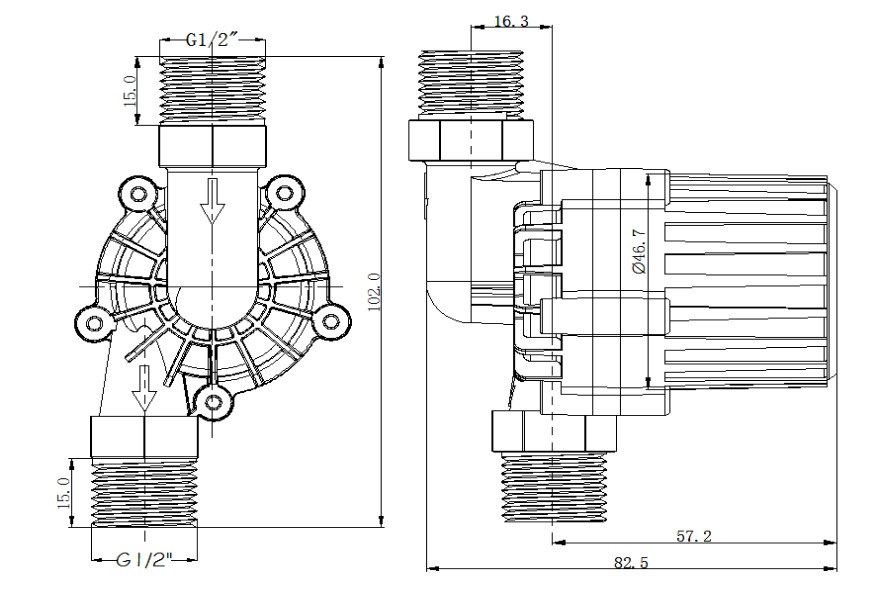

Dimension and Picture
Solar water heater circulation Pump DC45-1

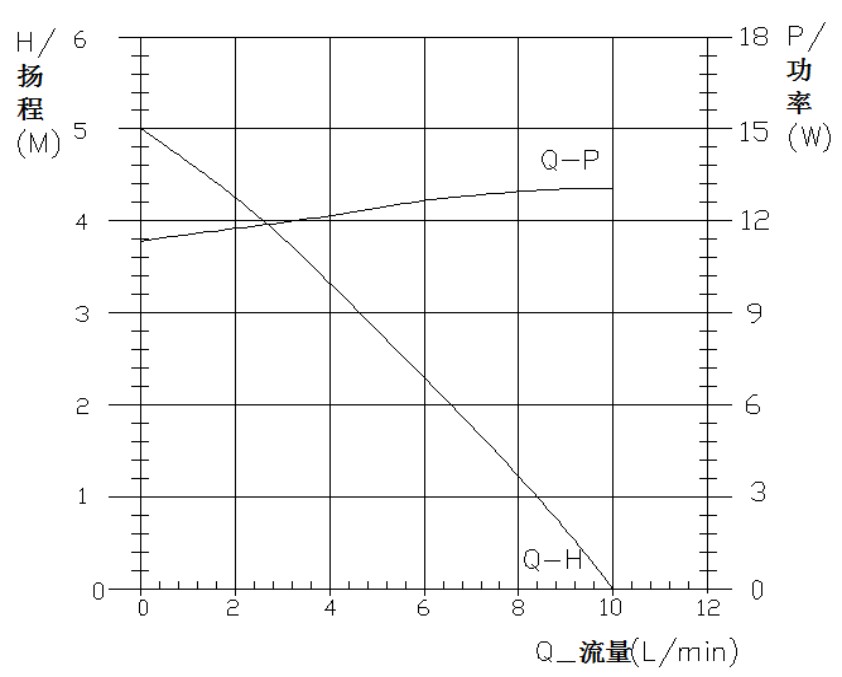

Head-Flow curve Graph
Solar Water Heater Circulation Pump DC45-2
