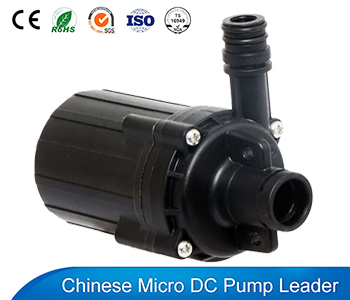

Hot Water Heater Boost Pump DC45

热水增加泵(DC45)
Product name:Hot Water Heater Boost Pump DC45
Item:
Details:
Hot Water Heater Boost Pump DC45 is a Water heater circulation pump it's videly used for
Water or oil circulation,Gas water Heater,Tankless water heaters ,Instant electric water heater ,
Solar water heater etc.

Application
Water or oil circulation.
Gas water Heater
Tankless water heaters .
Instant electric water heater .
Solar water heater.
Other Water boost equipment etc.

Feature
Lack water protect function.
Ceramic sleeve and ceramic shaft, long life.
Stall protection ,over current protection.
Closed impeller,high pressure.
PWM/0~5V speed control function [optional].
EMC compatibility test passed,no harassment signal

Parameter
Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
W
DC45
12
1.8
9
7
22
24
1
10
8
24
24
1
10
8
24

Specification
Specs
NO
Items
Specs
1
Sizes
80.5x49.4x78.1 weihgt 200g
2
Dimension of inlet
19mm
3
Dimension of outlet
12.3mm
4
Pump material
PPE
5
Condition of use
Continuously
6
Fluids
Water, antifreeze [Provide acid alkali solution]
7
Ambient temperature
-25~70℃
8
Max fluid temperature
70 ℃
9
Power consumption
22W~24W
10
Rated voltage
12V/24Vdc
11
Voltage used
10.8Vdc ~ 13.2Vdc , 21.6Vdc ~ 26.4Vdc
12
Noise
<45dB
13
Water proof class
IP30(Submersible installed optional)
14
Life span
More than 20000hrs
15
Power supply
Solar panel; DC electric source; battery

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft optional.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

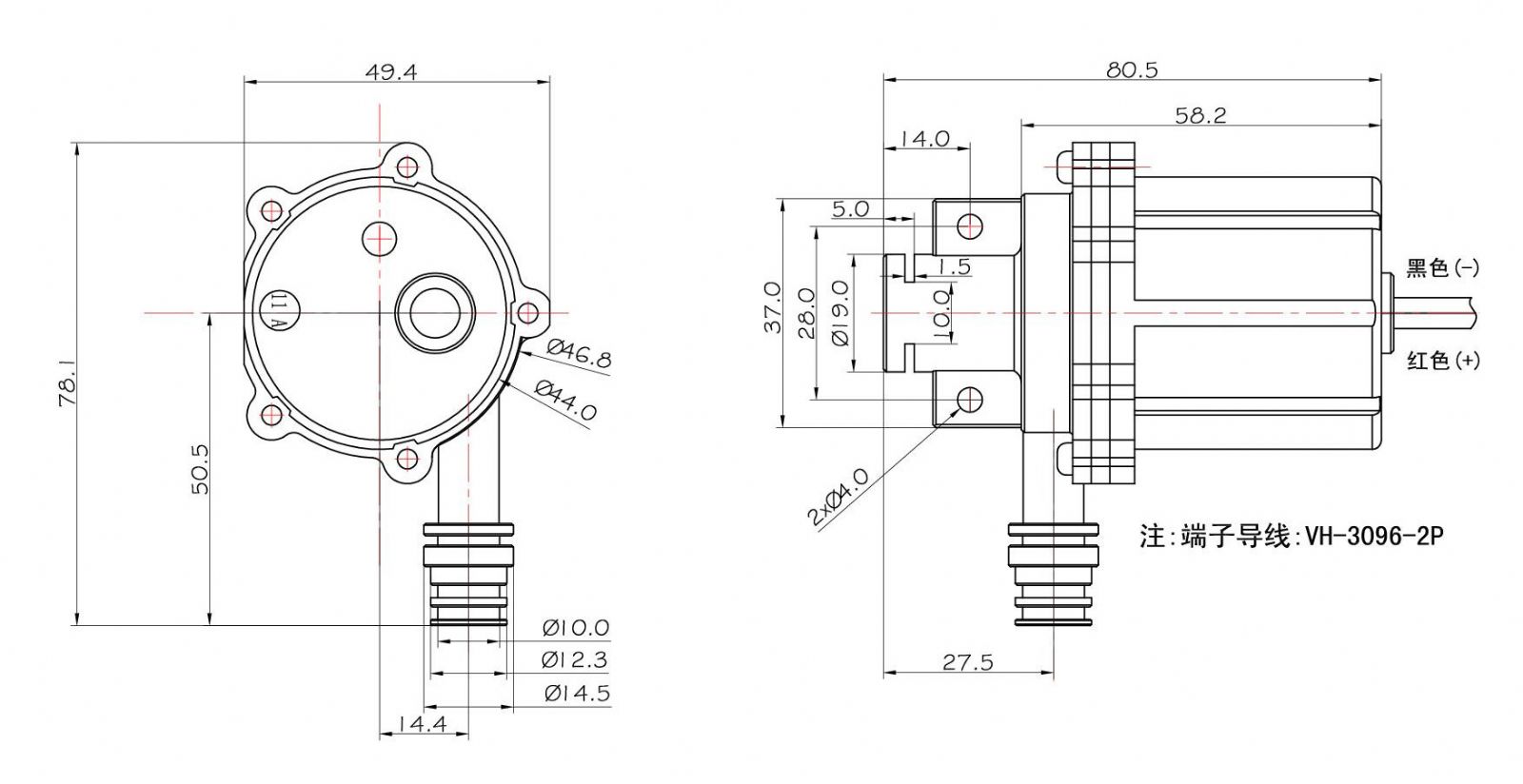

Dimension and Picture
Hot Water Heater Boost Pump DC45-1
