Home > Products > Food Safe Water Pump DC30C

Food Safe Water Pump DC30C

食品级水泵(DC30C)
Product name:Food Safe Water Pump DC30C
Item:
Details:
Food Safe Water Pump DC30C is a food grade electric water pump it's videly used for
Water Dispenser ,Coffer maker,Juice machines,Water Purifying Machine and
Other drinking water equipment.

Application
 Water Dispenser.
Coffer maker.
Water Purifying Machine.
Juice machines.
Other drinking water equipment

Feature
Can endure 100℃ high temperature.
Ceramic sleeve and ceramic shaft ,Long life.
Low noise.
Meet FDA standards .
All wetted materials is food grade.
PWM/0~5V speed control function [optional].

Parameter
Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
w
DC30C
6
0.9
2.5
1.5
5
12
0.6
3
2.0
7
24
0.3
3
2.0
7

Specification
Specs
NO
Items
Specs
1
Sizes
47.5x33x41.5; weight 40g
2
Dimension of inlet
14mm
3
Dimension of outlet
6.5mm
4
Pump material
PPE
5
Condition of use
Continuously
6
Fluids
Water [Provide acid and alkali solution]
7
Ambient temperature
-25~70℃
8
Max fluid temperature
100 ℃
9
Power consumption
5W~7W
10
Rated voltage
6V/12V/24V dc
11
Voltage used
4 ~ 9Vdc,8 ~ 20Vdc,12~30Vdc
12
Noise
<30dB
13
Water proof class
IP68(Submersible installed optional)
14
Life span
More than 20000hrs
15
Power supply
Solar panel; DC electric source; battery

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft optional.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

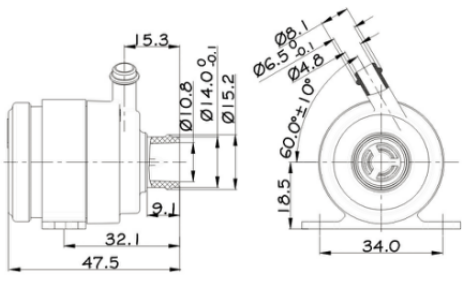

Dimension and Picture

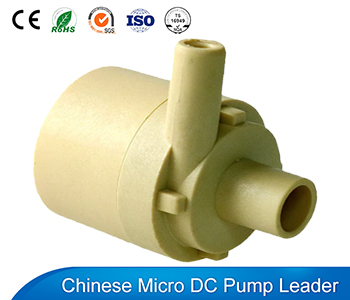

Food Safe Water Pump  DC30C

Head-Flow curve Graph
Food grade Water Pump DC30C-1
