Food Grade Hot Water Pump DC35

食品级热水泵(DC35)
Product name:Food Grade Hot Water Pump DC35
Item:
Details:
Food Grade Hot Water Pump DC35 is a food safe electric submersible water pump it's videly used for
Water Dispenser ,Coffer maker,Juice machines,Personal care products etc.

Application
Water Dispenser.
Coffer maker.
Water Purifying Machine.
Juice machines.
Other drinking water equipment

Feature
Can endure 100℃ high temperature.
Ceramic sleeve and ceramic shaft ,Long life.
Low noise.
Meet FDA standards .
All wetted materials is food grade.
PWM/0~5V speed control function [optional].

Parameter
Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
W
DC35
12
0.7
7
3
8
12
0.7
7
3
8
24
0.35
7
3
8
24
0.35
7
3
8

Specification
Specs
NO
Items
Specs
1
Sizes
73.7x45x50.5
2
Dimension of inlet
13.2mm
3
Dimension of outlet
8.8mm
4
Pump material
PPE
5
Condition of use
Continuously
6
Fluids
Water, oil [Provide acid and alkali solution]
7
Ambient temperature
-20~60℃
8
Max fluid temperature
0~100℃
9
Power consumption
6W~12W
10
Rated voltage
12V/24Vdc
11
Voltage used
8Vdc ~20Vdc, 12Vdc ~ 30Vdc
12
Noise
<35dB
13
Water proof class
IP68(Submersible installed optional)
14
Life span
More than 20000hrs
15
Power supply
Solar panel; DC electric source; battery

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft optional.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

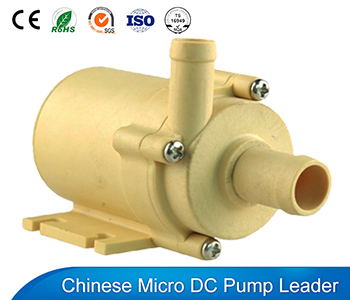

Dimension and Picture
food grade hot water pump DC35-1

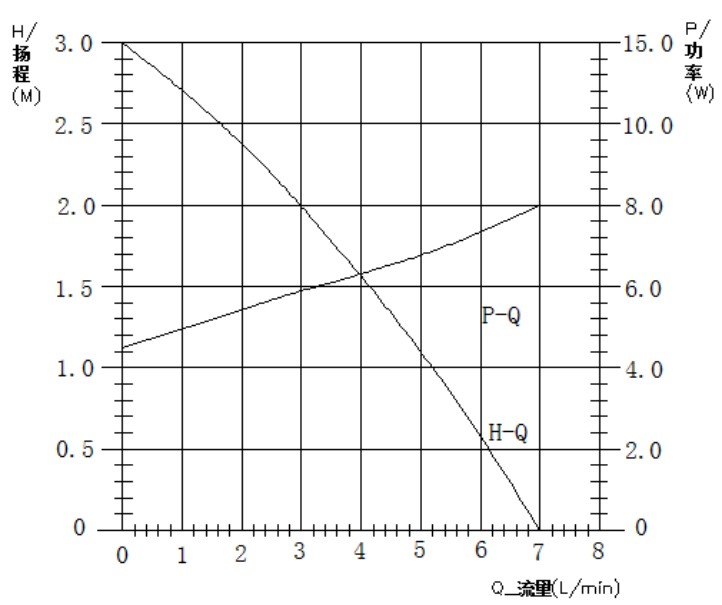

Head-Flow curve Graph
food grade hot water pump DC35-2
