Food Grade Water Pump DC30B

食品级水泵(DC30B)
Product name:Food Grade Water Pump DC30B
Item:
Details:
Food Grade Water Pump DC30B is a food safe electric water pump it's videly used for
Water Dispenser ,Coffer maker,Juice machines,Personal care products etc.


Application
 Water Dispenser .
Coffer maker.
Personal care products.
Juice machines.
Aquarium and fountain

Feature
 Can endure 100℃ high temperature.
Ceramic sleeve and ceramic shaft ,Long life.
Low noise.
PWM/0~5V speed control function [optional].
Meet FDA standards.
All wetted materials is food grade.

Parameter
Parameter (only for reference, it can be customized)
Model
Voltage
Rated Current
Max flow
Max head
Power
V
A
L/MIN
M
w
DC30B
6
0.72
2
2.2
5
6
0.72
2
2.2
5
12
0.37
2
2.2
5

Specification
Specs
NO
Items
Specs
1
Sizes
38.3x25x35.5; weight 20g
2
Dimension of inlet
9.6mm
3
Dimension of outlet
6.6mm
4
Pump material
PPE
5
Condition of use
Continuously
6
Fluids
Water [Provide acid and alkali solution]
7
Ambient temperature
-25~70℃
8
Max fluid temperature
100 ℃
9
Power consumption
2.5W~5W
10
Rated voltage
6V/12V dc
11
Voltage used
4 ~ 9Vdc,8 ~ 20Vdc
12
Noise
<30dB
13
Water proof class
IP68(Submersible installed optional)
14
Life span
More than 20000hrs
15
Power supply
Solar panel; DC electric source; battery

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3.  Ceramic sleeve and ceramic shaft optional

4.Stator and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.

Dimension and Picture

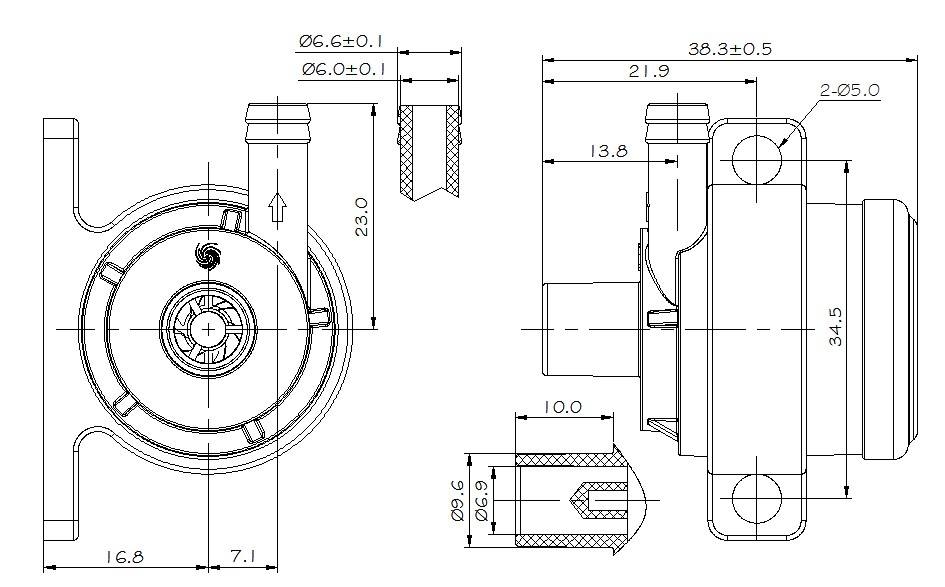

Food grade water pump DC30B-1

Head-Flow curve Graph

Food grade water pump DC30B flow-head
