Home > Products > Solar Dc Pump (DC40B)

Solar Dc Pump (DC40B)

Product name：Solar Dc Pump (DC40B)

Item：

Details：

DC40B Series
Solar DC Pump,Brushless Dc Pump,Bldc Pump,Submersible dc Pump

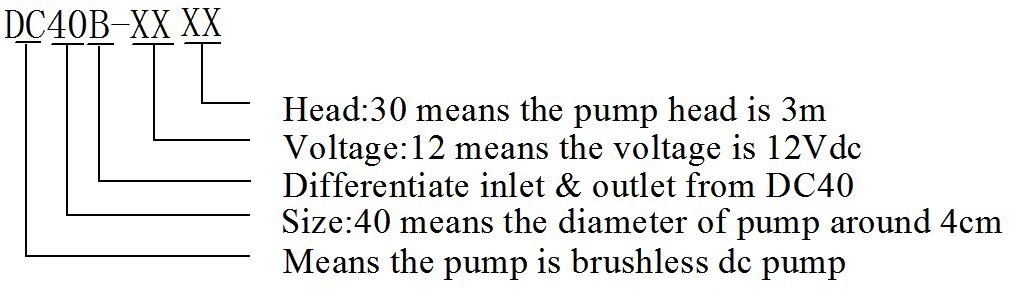

Mode Note:
DC40B Series Solar DC Pump Mode note

Specifications

NO

Items

Specs

1

Sizes and weight

71.9x59.5x43;250g

2

Dimension of inlet

13.8mm

3

Dimension of outlet

10mm

4

Driving method

Brushless, Magnetic , 2 phase or 3 phase

5

Pump material

PA66+GF30% (optional)

6

Condition of use

Continuously

7

Fluids

Water, oil,
gasoline, acid and alkali solution etc

8

Max working temp

60℃(2 phase)or 100℃(3 phase)

9

Power consumption

2.5W~15.6W

10

Rated voltage

12Vdc or 24Vdc

11

Voltage used

5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc

12

Max rated current

1A

13

Max flow rate

9L/MIN(2.4G/MIN)

14

Max Static Head

5m(16ft)

15

Noise

<35dB

16

Water proof class

IP68(can be submersible installed)

17

Life span

More than 30000hrs

18

Power supply

Solar panel; DC electric source; battery

Parameter (only for reference, it can be customized)

Model

Voltage

Current

Max flow

Max head

V

A

L/H

G/H

M

ft

DC40B-0510

5

0.5

250

66

1.0

3.5

DC40B-0615

6

0.6

300

79

1.5

4.9

DC40B-0935

9

0.87

420

122

3.5

11.4

DC40B-1220

12

0.45

350

93

2.0

6.5

DC40B-1230

12

0.7

400

106

3.0

9.7

DC40B-1240

12

0.98

460

122

4.0

13

DC40B-2430

24

0.35

400

106

3.0

9.7

DC40B-2440

24

0.5

460

127

4.0

13

DC40B-2450

24

0.65

520

148

5.0

16

Remarks

The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump

Ø

1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3.Ceramic sleeve and ceramic shaft 【optional】.

4.and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 2m to 4m.

6.Can be customized.

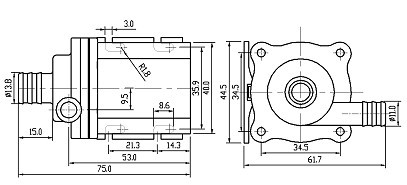

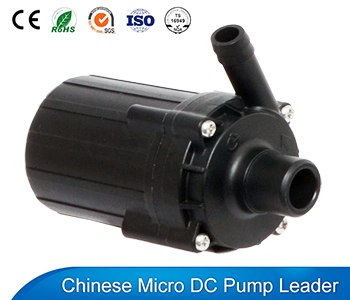

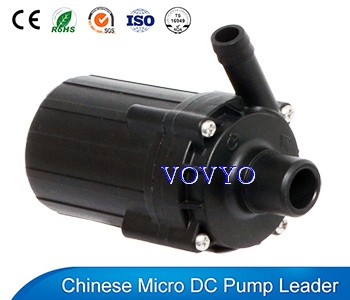

Dimension and Picture

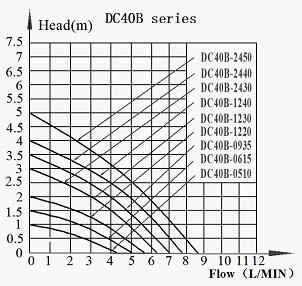

Head-Flow curve Graph
