Home > Products > Solar Dc Pump (DC50E)

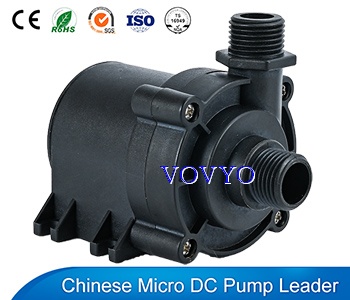

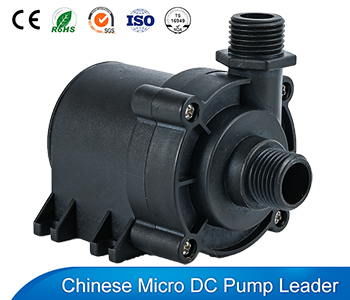

Solar Dc Pump (DC50E)

太阳能直流水泵(DC50E)
Product name:Solar Dc Pump (DC50E)
Item:
Details:
DC50E Series
Solar DC Pump,Brushless Dc Pump,Bldc Pump,Submersible Pump


Mode note
DC50E Solar DC Pump Series Mode note

Specifications
NO
Items
Specs
1
Sizes and weight
97.5x88.2x60.5;480g
2
Dimension of inlet
20mm(1/2 inch thread)
3
Dimension of outlet
20mm(1/2 inch thread)
4
Driving method
Brushless, Magnetic , 2 phase or 3 phase
5
Pump material
PA66+GF30% (optional)
6
Condition of use
Continuously
7
Fluids
Water, oil, acid and alkali solution etc
8
Max working temp
60(2 phase)or 100(3 phase)
9
Power consumption
2.5W~43.2W2 phase 2.5W~86.4W3 phase
10
Rated voltage
12Vdc or 24Vdc
11
Voltage used
5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12
Max rated current
1.8A(2 phase)or 3.6A(3 phase)
13
Max flow rate
17L/Min(4.5GPM) ---2 phase 20L/Min(5.5GPM) ---3 phase
14
Max Static Head
8m(26ft)---- 2 phase 15m(49ft)-- 3 phase
15
Noise
 <35dB
16
Water proof class
IP68(can be submersible installed)
17
Life span
More than 30000hrs
18
Power supply
Solar panel; DC electric source; battery

Parameter
(only for reference, it can be customized)
Model
Voltage
Current
Max flow
Max head
V
A
L/H
G/H
M
ft
DC50E-1250T
12
1.9
820
216.6
5
16.4
DC50E-1250S
DC50E-1250A
DC50E-1280S
12
3.6
1000
264.2
8
26.2
DC50E-1280A
DC50E-2480T
24
1.8
1000
264.2
8
26.2
DC50E-2480S
DC50E-2480A
DC50E-24150S
24
3.6
1200
317.0
15
49.2
DC50E-24150A
Remarks
The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Can be fixed on the vessel wall with sucking disk.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 3m to 8m.

6.Can be customized.


Dimension and Picture
DC50E Solar DC Pump Series Dimension and Picture


Head-Flow curve Graph

DC50E Solar DC Pump Series Head-Flow curve Graph
