Home > Products > Small Water Pump (DC50A)

Small Water Pump (DC50A)

Product name：Small Water Pump (DC50A)

Item：

Details：

DC50A Series
Brushless Dc pump,BLDC Pump,Submersible pump

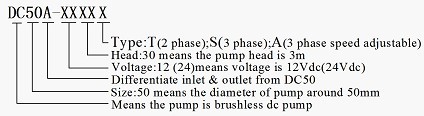

Mode note:

Specifications

NO

Items

Specs

1

Sizes and weight

105.5x84x64;480g

2

Dimension of inlet

27mm

3

Dimension of outlet

27mm

4

Driving method

Brushless, Magnetic , 2 phase or 3 phase

5

Pump material

PA66+GF30% (optional)

6

Condition of use

Continuously

7

Fluids

Water, oil, acid and alkali solution etc

8

Max working temp

60℃(2 phase)or 100℃(3 phase)

9

Power consumption

2.5W~45.6W（2 phase） 2.5W~86.4W（3 phase）

10

Rated voltage

12Vdc or 24Vdc

11

Voltage used

5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc

12

Max rated current

1.9A(2 phase)or 3.6A(3 phase)

13

Max flow rate

42L/Min(11GPM) ---2 phase 60L/Min(19GPM) ---3 phase

14

Max Static Head

3.5m(11.5ft)---- 2 phase 5.0m(16.5ft)---- 3 phase

15

Noise

<35dB

16

Water proof class

IP68(can be submersible installed)

17

Life span

More than 30000hrs

18

Power supply

Solar panel; DC electric source; battery

Parameter (only for reference, it can be customized)

Model

Voltage

Current

Max flow

Max head

V

A

L/H

G/H

M

ft

DC50A-1223S

12

2.6

2000

528.4

2.3

7.5

DC50A-1223A

DC50A-1230S

12

3.0

2200

581.2

3.0

9.8

DC50A-1230A

DC50A-1235S

12

3.8

2500

660.5

3.5

11.5

DC50A-1235A

DC50A-2423T

24

1.3

2000

528.4

2.4

7.7

DC50A-2423S

DC50A-2423A

DC50A-2435T

24

1.9

2500

660.5

3.5

11.5

DC50A-2435S

DC50A-2435A

DC50A-2440S

24

3.0

2900

766.2

4.0

13.1

DC50A-2440A

DC50A-2450S

24

3.6

3600

951.1

5.0

16.4

DC50A-2450A

Remarks

The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump

Ø

1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Ceramic sleeve and ceramic shaft 【optional】.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3.5m.

6.Can be customized.
