Mini Pump (DC30)

潜水直流水泵(DC30)

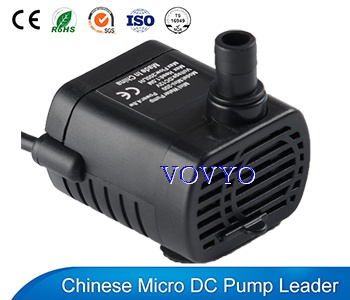

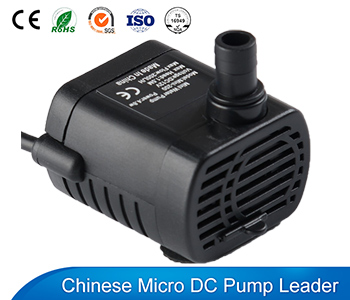

Product name:Mini Pump (DC30)
Item:
Details:
DC30 Series
Submersible DC Pump,BLDC Pump,Brushless dc pump


Mode note
DC30 Submersible Dc Pump Series Mode note

Specifications
NO
Items
Specs
1
Sizes and weight
34x36.5x39; 50g
2
Dimension of outlet
Optional (8mm or 5mm or 6mm)
3
Driving method
Brushless, Permanent Magnetic , 2 phase
4
Pump material
ABS (optional)
5
Condition of use
Continuously
6
Fluids
Water, oil,
gasoline, acid and alkali solution etc
7
Max working temp
60 Celsius
8
Power consumption
0.5W~4.2W
9
Rated voltage
12Vdc
10
Voltage used
4.5Vdc ~ 12Vdc
11
Max rated current
350mA
12
Max flow rate
4L/MIN(1.06G/MIN)
13
Max Static Head
1.9m(6ft)
14
Noise
 <35dB
15
Water proof class
IP68(can be submersible installed)
16
Life span
More than 30000hrs
17
Power supply
Solar panel; DC electric source; battery

Parameter
(only for reference, it can be customized)
Model
Voltage
Current
Max flow
Max head
V
A
L/H
G/H
M
ft
DC30-0404
4.5
0.1
100
26
0.4
1.3
DC30-0505
5
0.11
110
29
0.5
1.6
DC30-0606
6
0.11
120
32
0.6
2
DC30-0708
7
0.13
160
42
0.8
2.6
DC30-0911
9
0.15
170
45
1.1
3.6
DC30-1215
12
0.21
210
56
1.5
4.9
DC30-1219
12
0.35
240
63
1.9
6.2
Remarks
The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Can be fixed on the vessel wall with sucking disk.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 1.5m to 1.9m.

6.Can be customized.


Dimension and Picture
DC30 Submersible Dc Pump Series picture


Head-Flow curve Graph
DC30 Submersible Dc Pump Series Performance curves
