Home > Products > Mini Dc Pump(DC30A)

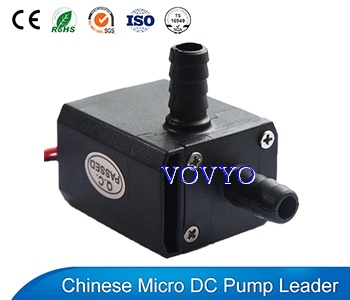

Mini Dc Pump(DC30A)

Product name：Mini Dc Pump(DC30A)

Item：

Details：

DC30A Series
BLDC PUMP,Dc Brushless Pump,mini Dc Pump,

Mode note:

Specifications

NO

Items

Specs

1

Sizes and weight

51x34x42.7; 50g

2

Dimension of inlet

Optional (10mm or 8mm or 6mm)

3

Dimension of outlet

Optional (8mm or 5mm or 6mm)

4

Driving method

Brushless, Permanent Magnetic , 2 phase

5

Pump material

ABS+PC(optional)

6

Condition of use

Continuously

7

Fluids

Water, oil,
gasoline, acid and alkali solution etc

8

Max working temp

60 Celsius

9

Power consumption

0.5W~4.2W

10

Rated voltage

12Vdc

11

Voltage used

4.5Vdc ~ 12Vdc

12

Max rated current

350mA

13

Max flow rate

4L/MIN(1.06G/MIN)

14

Max Static Head

3m(9.8ft)

15

Noise

<35db

16

Water proof class

IP68(can be submersible installed)

17

Life span

More than 30000hrs

18

Power supply

Solar panel; DC electric source; battery

Parameter (only for reference, it can be customized)

Model

Voltage

Current

Max flow

Max head

V

A

L/H

G/H

M

ft

DC30A-0406

4.5

0.10

100

26

0.6

2.0

DC30A-0609

6

0.11

120

32

0.9

3.0

DC30A-0913

9

0.14

170

45

1.3

4.2

DC30A-1215

12

0.18

200

53

1.5

4.8

DC30A-1219

12

0.22

210

55

1.9

6.2

DC30A-1225

12

0.26

230

61

2.5

8.1

DC30A-1230

12

0.35

240

63

3.0

9.7

Remarks

The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump

Ø

1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3. Can be fixed on the vessel wall with sucking disk.

4.Stator and circuit board sealed by epoxy resin, completely water proof.

5.Parameter adjustable, 12v pump’s head can be 1.5m to 3m.

6.Can be customized.

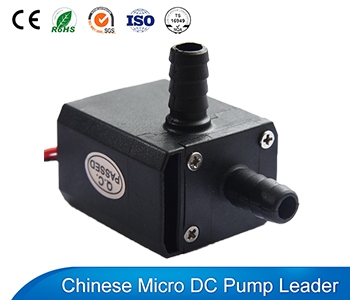

Dimension and Picture

Head-Flow curve Graph

DC30A Submersible Dc Pump Series Head-Flow curve Graph
