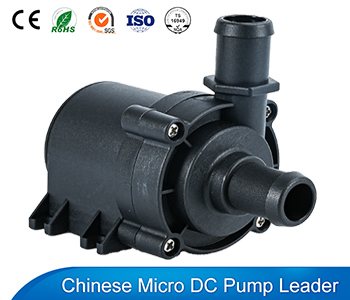

Mini Pump (DC50)

潜水直流水泵(DC50)
Product name:Mini Pump (DC50)
Item:
Details:
DC50 Series
Submersible DC Pump,BLDC Pump,Brushless dc pump,


Mode note

dc50 Submersible Dc Pump Mode note

Specifications
NO
Items
Specs
1
Sizes and weight
100.5x84.5x64;480g
2
Dimension of inlet
22.5mm
3
Dimension of outlet
22.5mm
4
Driving method
Brushless, Magnetic , 2 phase or 3 phase
5
Pump material
PA66+GF30% (optional)
6
Condition of use
Continuously
7
Fluids
Water, oil, acid and alkali solution etc
8
Max working temp
60(2 phase)or 100(3 phase)
9
Power consumption
2.5W~50.4W2 phase 2.5W~86.4W3 phase
10
Rated voltage
12Vdc or 24Vdc
11
Voltage used
5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12
Max rated current
2.1A(2 phase)or 3.8A(3 phase)
13
Max flow rate
36L/Min(9.5GPM) ---2 phase 43L/Min(12 GPM) ---3 phase
14
Max Static Head
4m(13ft)---- 2 phase 7m(23ft)---- 3 phase
15
Noise
 <35dB
16
Water proof class
IP68(can be submersible installed)
17
Life span
More than 30000hrs
18
Power supply
Solar panel; DC electric source; battery

Parameter
(only for reference, it can be customized)

Model
Voltage
Current
Max flow
Max head
V
A
L/H
G/H
M
ft
DC50-1220T
12
1.5
1300
343
2
6.6
DC50-1220S
DC50-1220A
DC50-1230S
12
2.6
1700
449
3
9.8
DC50-1230A
DC50-1240S
12
3.8
2150
568
4
13.1
DC50-1240A
DC50-2430T
24
1.3
1700
449
3
9.8
DC50-2430S
DC50-2430A
DC50-2440T
24
1.9
2150
568
4
13.1
DC50-2440S
DC50-2440A
DC50-2450S
24
2.8
2300
608
5
16.4
DC50-2450A
DC50-2470S
24
3.6
2500
661
7
23.0
DC50-2470A
Remarks
The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3.  Ceramic sleeve and ceramic shaft optional

4.Stator and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 1.5m to 4m.

6.Can be customized.


Dimension and Picture
DC50 Submersible Dc Pump Dimension and Picture


Head-Flow curve Graph

DC50 Submersible Dc Pump Head-Flow curve Graph
