Home > Products > Mini Pump (DC40D)

Mini Pump (DC40D)

潜水直流水泵(DC40D)
Product name:Mini Pump (DC40D)
Item:
Details:
DC40D Series

Submersible DC Pump,BLDC Pump,Brushless dc pump,

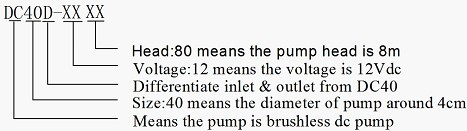

Mode note

DC40D Submersible Dc Pump Series Mode note

Specifications
NO
Items
Specs
1
Sizes and weight
85x62.2x48;250g
2
Dimension of inlet
10mm
3
Dimension of outlet
10mm
4
Driving method
Brushless, Magnetic , 2 phase or 3 phase
5
Pump material
PA66+GF30% (optional)
6
Condition of use
Continuously
7
Fluids
Water, oil,
gasoline, acid and alkali solution etc
8
Max working temp
60(2 phase)or 100(3 phase)
9
Power consumption
2.5W~26.4W
10
Rated voltage
12Vdc or 24Vdc
11
Voltage used
5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12
Max rated current
1.2A
13
Max flow rate
10L/MIN(2.6G/MIN)
14
Max Static Head
8m(26ft)
15
Noise
 <35dB
16
Water proof class
IP68(can be submersible installed)
17
Life span
More than 30000hrs
18
Power supply
Solar panel; DC electric source; battery

Parameter
(only for reference, it can be customized)

Model
Voltage
Current
Max flow
Max head
V
A
L/H
G/H
M
ft
DC40D-1250
12
1.1
450
120
5.0
16.0
DC40D-2480
24
1.1
550
146
8.0
26.0
Remarks
The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3.  Ceramic sleeve and ceramic shaft optional

4.Stator and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 2m to 5m.

6.Can be customized.
