Home > Products > Mini Pump (DC40B)

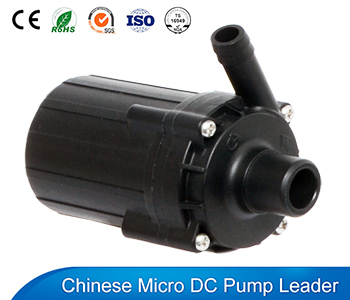

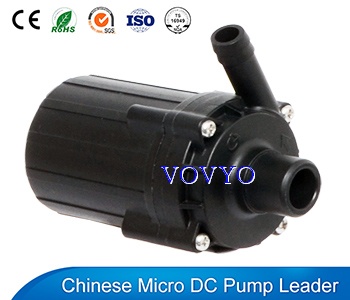

Mini Pump (DC40B)

潜水直流水泵(DC40B)
Product name:Mini Pump (DC40B)
Item:
Details:
DC40B Series
Submersible DC Pump,BLDC Pump,Brushless dc pump


Mode Note:
DC40B Submersible Dc Pump Series Mode note
Specifications
NO
Items
Specs
1
Sizes and weight
71.9x59.5x43;250g
2
Dimension of inlet
13.8mm
3
Dimension of outlet
10mm
4
Driving method
Brushless, Magnetic , 2 phase or 3 phase
5
Pump material
PA66+GF30% (optional)
6
Condition of use
Continuously
7
Fluids
Water, oil,
gasoline, acid and alkali solution etc
8
Max working temp
60(2 phase)or 100(3 phase)
9
Power consumption
2.5W~15.6W
10
Rated voltage
12Vdc or 24Vdc
11
Voltage used
5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12
Max rated current
1A
13
Max flow rate
9L/MIN(2.4G/MIN)
14
Max Static Head
5m(16ft)
15
Noise
 <35dB
16
Water proof class
IP68(can be submersible installed)
17
Life span
More than 30000hrs
18
Power supply
Solar panel; DC electric source; battery

Parameter
(only for reference, it can be customized)
Model
Voltage
Current
Max flow
Max head
V
A
L/H
G/H
M
ft
DC40B-0510
5
0.5
250
66
1.0
3.5
DC40B-0615
6
0.6
300
79
1.5
4.9
DC40B-0935
9
0.87
420
122
3.5
11.4
DC40B-1220
12
0.45
350
93
2.0
6.5
DC40B-1230
12
0.7
400
106
3.0
9.7
DC40B-1240
12
0.98
460
122
4.0
13
DC40B-2430
24
0.35
400
106
3.0
9.7
DC40B-2440
24
0.5
460
127
4.0
13
DC40B-2450
24
0.65
520
148
5.0
16
Remarks
The current above is starting current, when contact to circulation system the current will cut down to 55%~65% of Rated current.

Advantages of our DC pump
Ø
1.Brushless, permanent magnetic rotor, maintenance-free, long life.

2. Small size, high efficiency, low consumption, low noise.

3.Ceramic sleeve and ceramic shaft optional.

4.and circuit board sealed by epoxy resin, completely water proof.

 5.Parameter adjustable, 12v pump’s head can be 2m to 4m.

6.Can be customized.


Dimension and Picture
DC40B Submersible Dc Pump Series Dimension and picture


Head-Flow curve Graph

DC40B Submersible Dc Pump Series Head-Flow curve Graph
